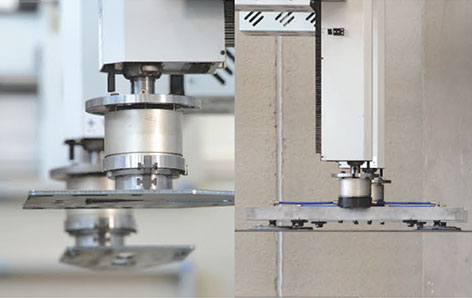

ASTES4SORT

ASTES4SORT (A4SORT) is an "lntelligent FMS" (Flexible Manufacturing System) - patented worldwide - specifically designed for sorting. A4SORT manages the loading of sheet metal up to 20mm thickness and 8000 mm length and the sorting of single cut parts generated by 2D cutting machines.

A4SORT is able to sort, move and stock cut parts of any shape, placing and kitting them for further use.

A4SORT con be fitted to new and/or already existing cutting systems. Due to its modularity, A4SORT con be easily installed in already-operative production sites. A4SORT effortlessly interfaces to automatic warehouses where sheet metal plates and cut parts pallets con be positioned.

A4SORT is applicable to all cutting processes where controlled, ruled and traceable production is required.

A4SORT is the combination of most advanced handling and picking technologies, managed by a powerful software able to grant maximum flexibility, productivity and repeatability integrated with ERP systems.

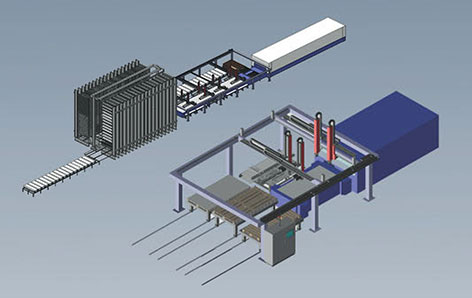

ASTES4HEAVY

ASTES4HEAVY (A4HEAVY) is an "lntelligent FMS" (Flexible Manufacturing System) - patented worldwide - specifically designed for handling & sorting applications.

A4HEAVY manages loading of sheet metal over 50 mm thickness and over 18000 mm length and the sorting of single cut parts created by 2D Plasma cutting machines, C02 and fiberlaser up to the thickness allowed by this technology.

A4HEAVY is able to sort, move and stock cut parts of any shape, placing and kitting them for further use.

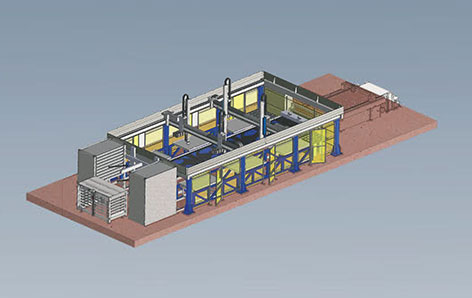

ASTES4COMPO

ASTES4COMPO (A4COMPO) is on "lntelligent FMS" (Flexible Manufacturing System) - patented worldwide - specially designed for the sorting, kitting and stacking of dynamically nested plies.

A4COMPO con manage the sorting of single cut parts produced by 2D cutting machines in several application fields.

A4COMPO is able gently to pick up parts of any geometry, automatically sort, move and stuck them for further processing.

A4COMPO represents the highest sorting and kitting technology ensuring maximum safety and quality of production.

ASTES4CORE

ASTES4CORE (A4CORE) it is a fully automatic solution for the assembly of the single magnetic foils composing the cores of transformers and reactors, single phase and three phase and with 5 legs.

The assembly of the magnetic foils with A4CORE ensures a high degree of accuracy of the sequence with which the various cut pats are placed next to each other.

This grants better continuity in the ferromagnetic core, thus obtaining the best results in terms of total magnetic reluctance.

ASTES4CORE has been developed based on an exclusive ASTES4 property international patent.
