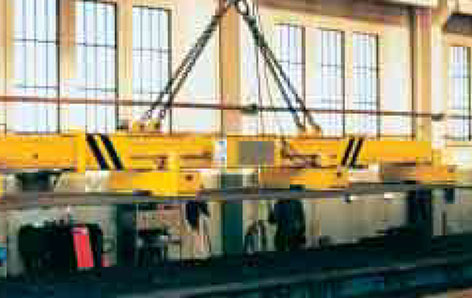

TM4

For single plate handling up to 12m.

Version with 4 cross beams with 2 magnetic modules each.

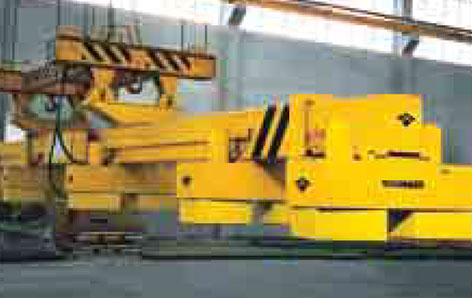

TM6

For single plate handling up to 16m.

Version with 6 cross beams with 2 magnetic modules each.

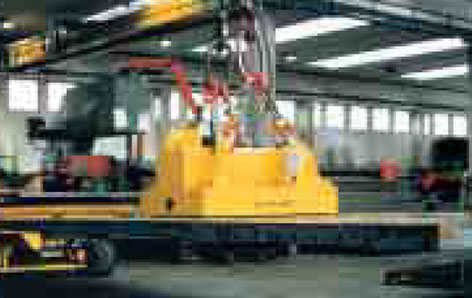

SML

For handling single plates or semifinished blocks.

SML permanent electro-magnetic modules are the ideal answer for handling where operational air gaps are small.

• Favorable ratio between the hoisting load and the lifter weight.
• Multipole circuit to spread uniformly the force.
• APC magnetic power selector.
• Compact size and reduced weight.
• Innovative technology.

OPTIONAL

• AVC/1 Automatic spring cable reel

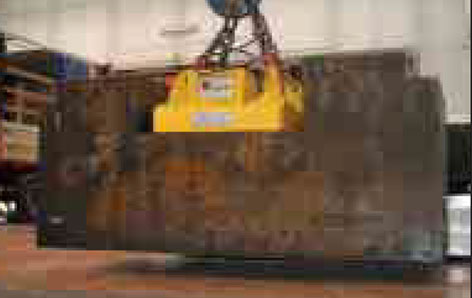

SMH

For handling single thick slabs and forged blocks.

SMH permanent electro-magnetic modules are designed for hoisting loads with big operational air gaps.

• 4-pole circuit for high force concentration.
• High magnet power.
• APC magnetic power selector.
• Compact size and reduced weight.

OPTIONAL

• AVC/1 Automatic spring cable reel

Beam and Section Units

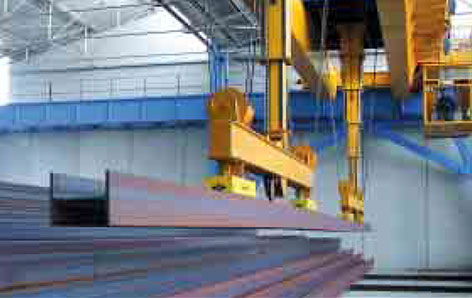

TP

For handling merchant beams and sections.

Modular systems combining the benefits of safe hoisting, compactness and convenience. Their specially shaped profile allows overturning of beams on the ground and easy loading on racks or vehicles.

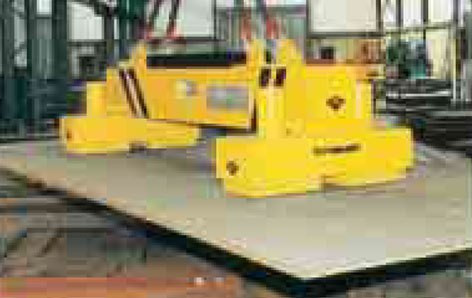

Fix Beams

BF 2

For handling single plates up to 6 m

Version with 2 cross beams with 2 magnetic modules each.

• High-strength steel-tube structure (Fe 510B).
• Magnetic modules with monobloc construction fitted with elastic suspension for automatic adaptation to load shape and bending.
• APC Power Regulator.

OPTIONAL

• AVC/1 Automatic spring cable reel.
• SRM 90° Manual Rotation System of cross beams.

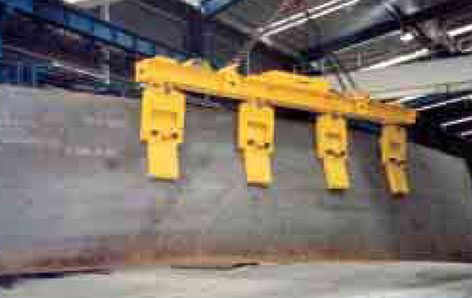

Tilting Beams

TB

For handling single plates up to 12 metres long.

Fixed beams with tilting modules provide vertical plate handling. This joins the intrinsic safety of permanent electromagnet systems to compactness and great warehouse space saving:

• Compact structure made in electro-welded high resistance steel.
• Tilting modules suspended on ball bearing.

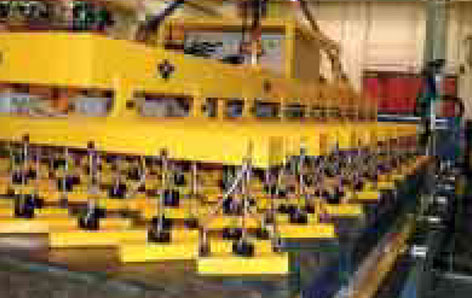

Fix Beams for Cutting Systems

TT

For handling single plates and skeleton of cutting.

TT modular systems are taylor made by adapting them to the size of the plate and the cutted pieces. They allow easy and fast loading & unloading operations on any type of cutting machines (plasma, oxyacetylene, laser, high definition). In particular they free the bench from cut plate and skeleton in a single move to make the machine immediately available.

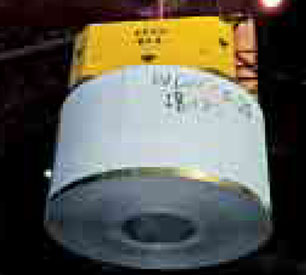

CV

Modules for handling cold-rolled coils, vertical eye.

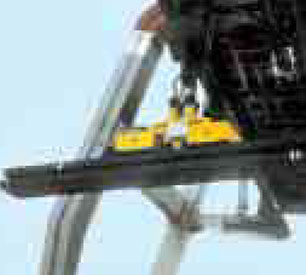

BR

Modules for handling slabs Typical application: on harbour cranes, to load/unload ships.

Dedicated solutions for any load shape size and weight.

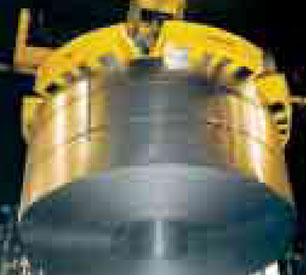

CO

Modules for handling open coils, vertical eye (anneawing process).

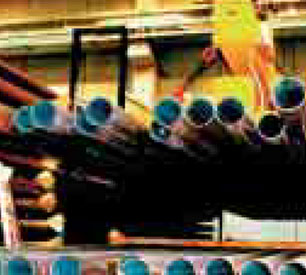

TU

Modules for handling layers of seamless pipe.

For the lifting of layers of tube without welding and round loads of various types

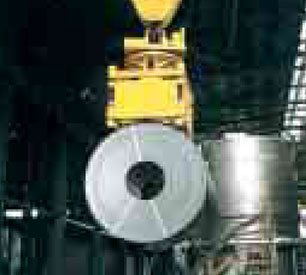

CH

Modules for handling cold-rolled coils with a horizontal eye.

Complete with automatic loadcentering system.

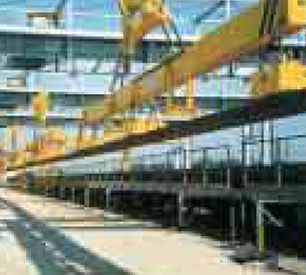

RO

Modules for handling slabs, even on harbour cranes.

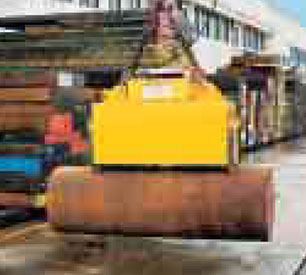

RD

Modules for lifting rounds. For the movement of round loads only.

The modules “V” groove design adapts to the morphology of the load allowing the centering of the module on the load during clamping phase.

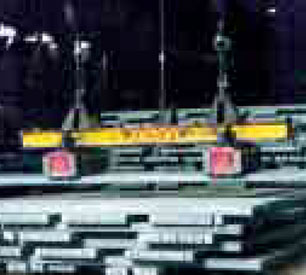

BL

Permanent-electro magnetic modules for handling layers of billets up to 600° C – in the core.

Dedicated solution for any load shape, size and weight.

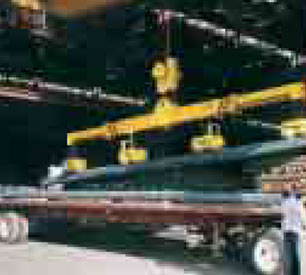

EM

Electromagnetic modules for handling bundles.

Bat Grip

3 Ton capacity permanent-electro lifters with battery.

Equipped with a remote control, this lifter is capable to ensure a long and independent from the power supply (est 7 days) because the energy from the battery is only used for a fraction of a second during the MAG/DEMAG phase.
