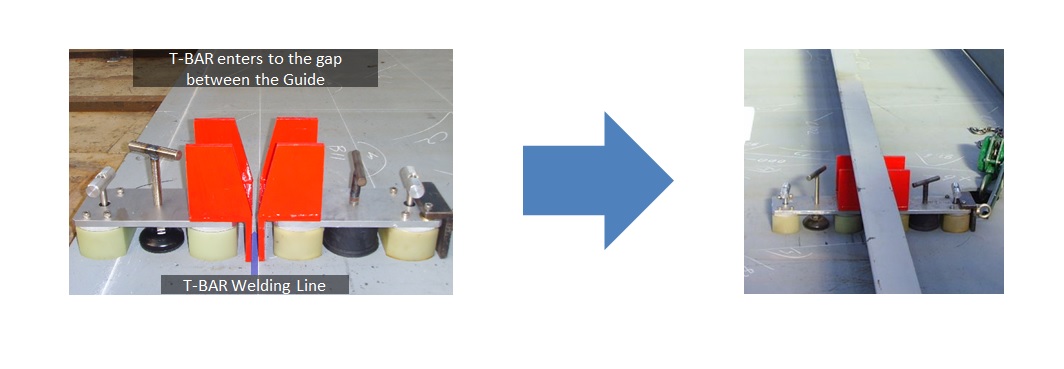

T-BAR mounting in aligning with the welding line
The design is small bevel sliding for smoother inserting of T-bar or flat bar
After Seating the T-bar or Flat bar in place it will prevent falling into two fixture without tagging the crane
Magswitch is a technology that allows a permanent magnet to be turned on and off mechanically like an electromagnet but with no need for ongoing power to sustain a strong magnetic field. Like no other Magswitch is super strong for its size exhibiting up to 5 times the power of other magnet systems.
Download brochure here
(You will need Adobe Reader to read the PDF)
T-BAR Setup Guide & Guide piece
TBR-1100-240H
Weight: 10.5kg
Max Magnetic Force 1060kgf
Measurement210L x 132Wx 240H
Guiding tool to align T-Bar & Longi along the welding line(Max Height up to 500mm)
TBR-1100-240H
Weight: 12.5kg
Max Magnetic Force 1060kgf
Measurement210L x 132Wx 350H
Guiding tool to align T-Bar & Longi along the welding line(Max Height up to 700mm)
