magswitch

Magswitch is a technology that allows a permanent magnet to be turned on and off mechanically like an electromagnet but with no need for ongoing power to sustain a strong magnetic field. Like no other Magswitch is super strong for its size exhibiting up to 5 times the power of other magnet systems.

Download brochure here

(You will need Adobe Reader to read the PDF)

adobe pdf icon

Magnetic Pusher

Stronger shear force than Max magnet Force

Light weight and powerful push power

Align welding line for T-Bar, stiffner, Deck house wall, Etc

Temporary tack welding is not required

No Post welding process such as grinding

Imporve productivtiy

Improve workshop environment, Free from grinding noise, grainding dust

No oil leaks

Patent pending

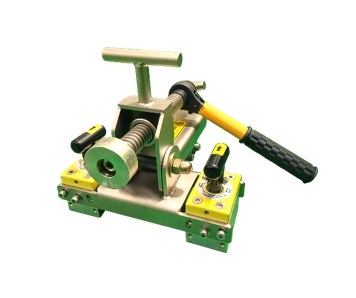

Pusher-500

hook1
Weight: 7.4kg
Max Magnetic Force 500kgf
Measurement240L x 270Wx 225H
Shear Force: Over 700kg (achived over 800kgf)
