Crane Rail

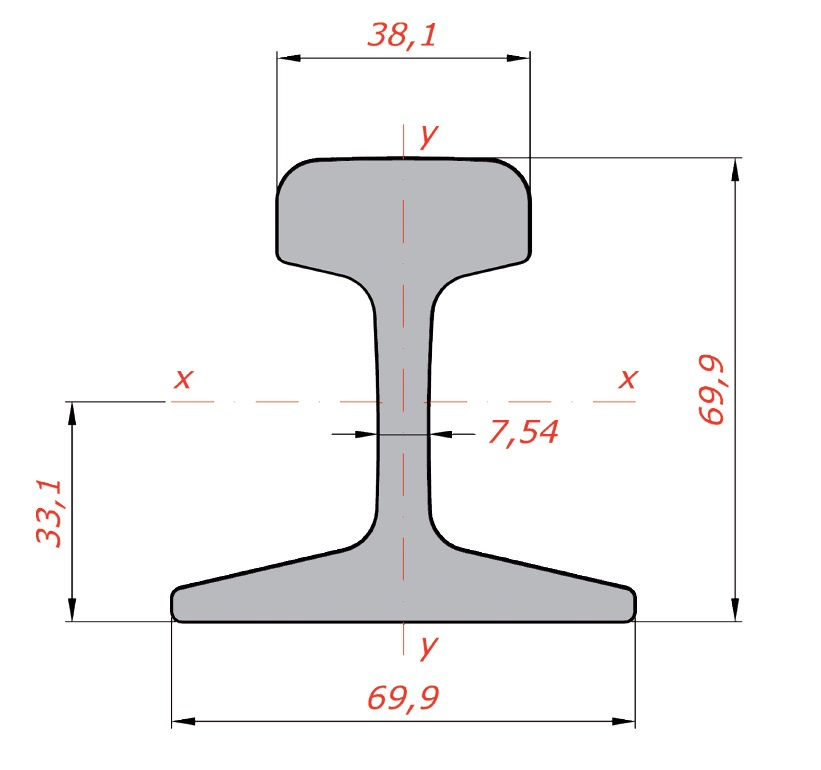

JIS 12kg Rail

Head 38.1mm
Height 69.9mm
Base 69.9mm
Weight per meter 12.2kg
Available in 6~10m, 12m and 18m

Availabe with holes at both end

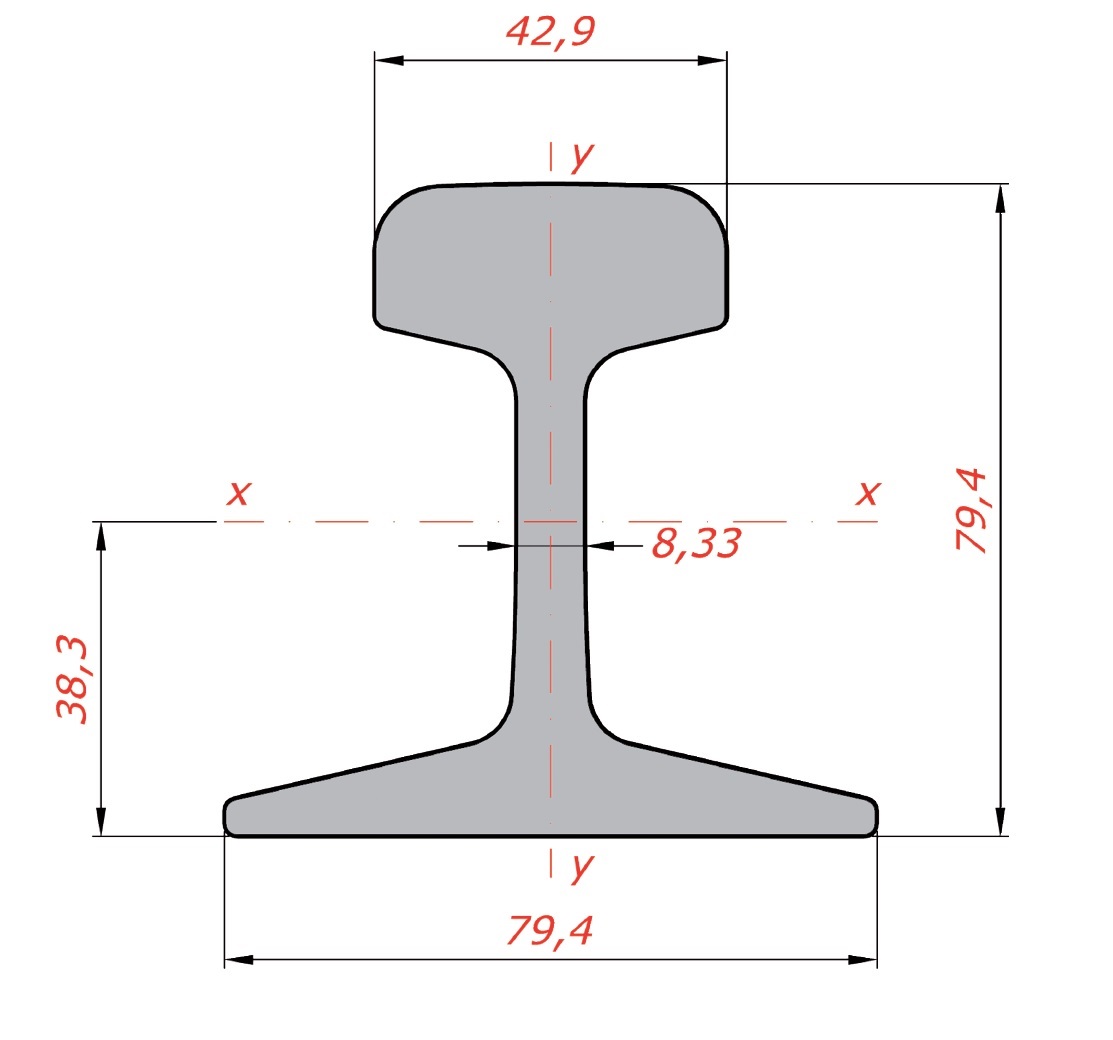

JIS 15kg Rail

Head 42.9mm
Height 79.4mm
Base 79.4mm
Weight per meter 15.2kg
Available in 6~10m, 12m and 18m

Availabe with holes at both end

JIS 22kg Rail

Head 50.8mm
Height 93.7mm
Base 93.7mm
Weight per meter 22.3kg
Available in 6~10m, 12m and 18m

Availabe with holes at both end

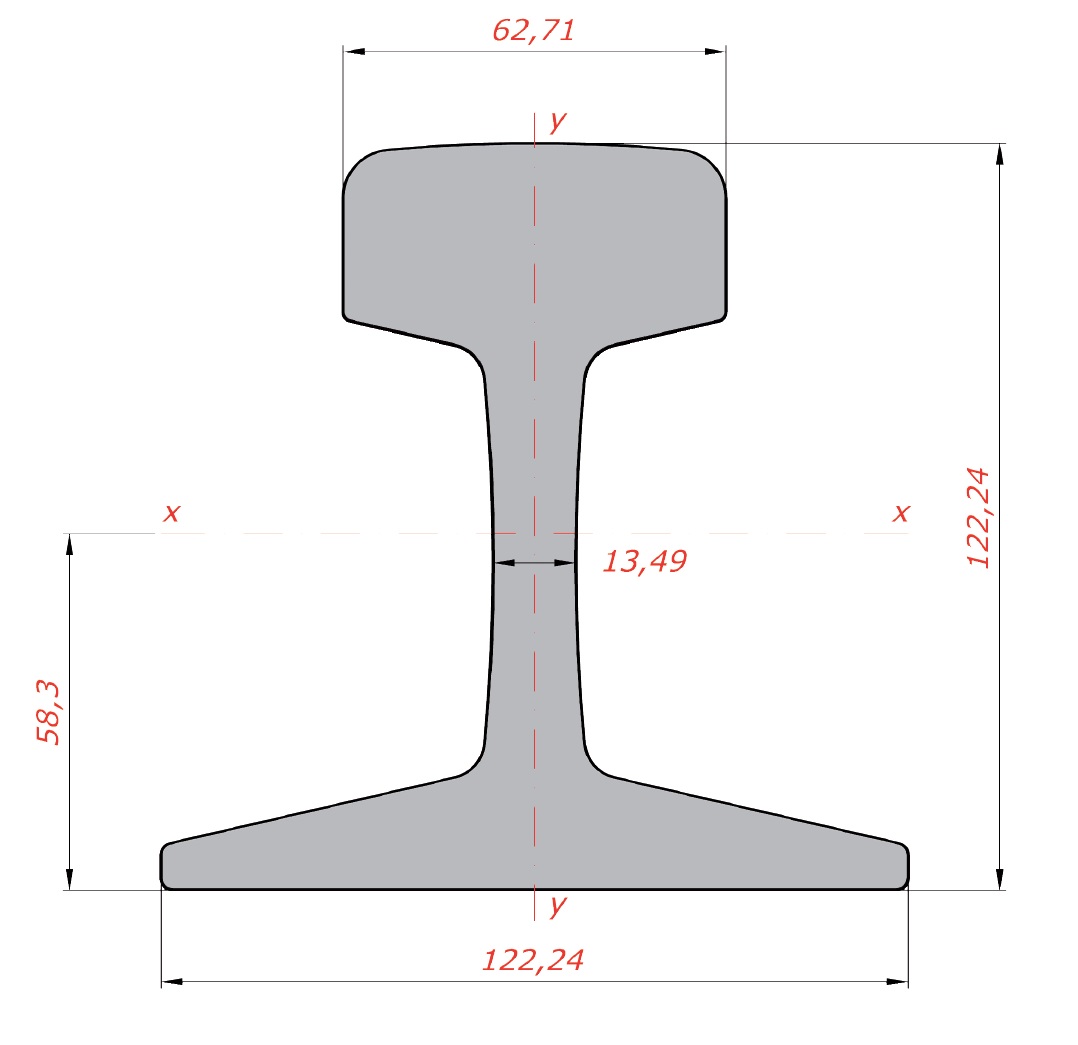

JIS 37Akg Rail

Head 62.71mm
Height 122.24mm
Base 122.24mm
Weight per meter 37.2kg
Available in 6~10m, 12m and 18m

Availabe with holes at both end

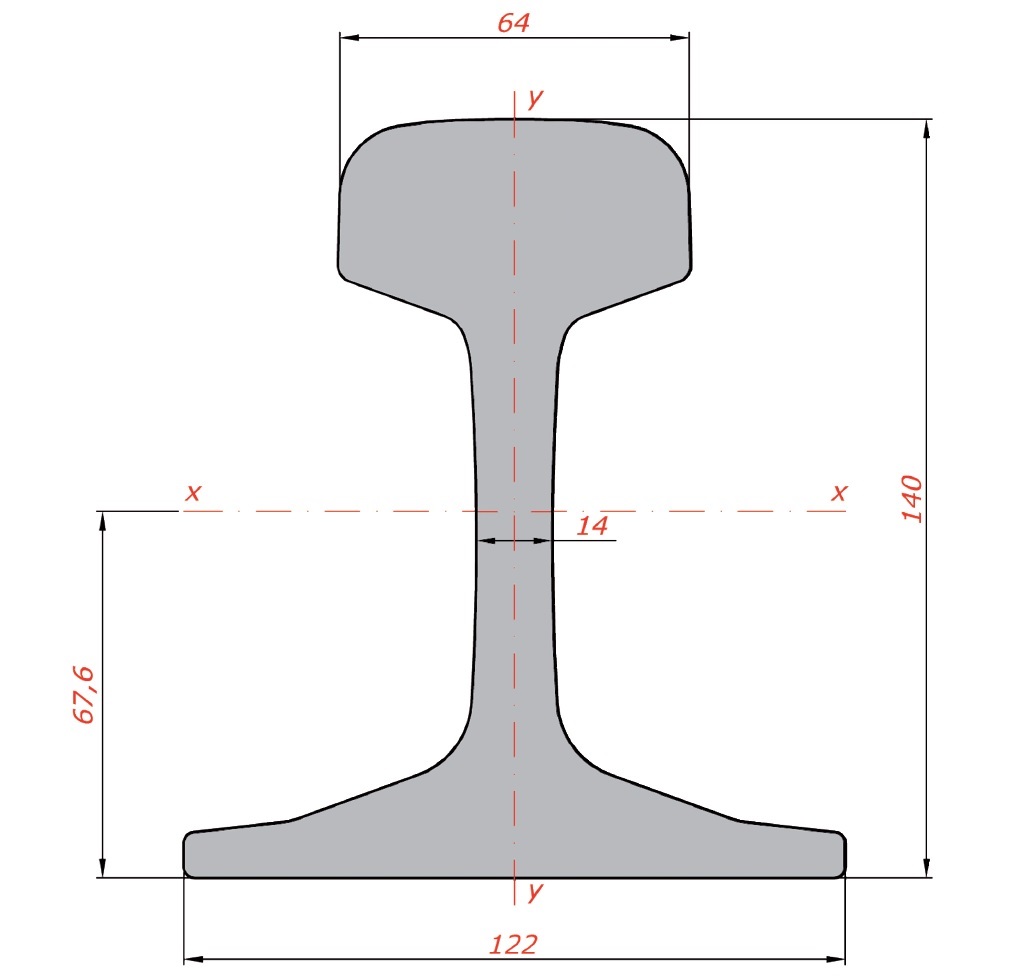

JIS 40kgN Rail

Head 64mm
Height 140mm
Base 122mm
Weight per meter 40.9kg
Available in 6~10m, 12m and 18m

Availabe with holes at both end

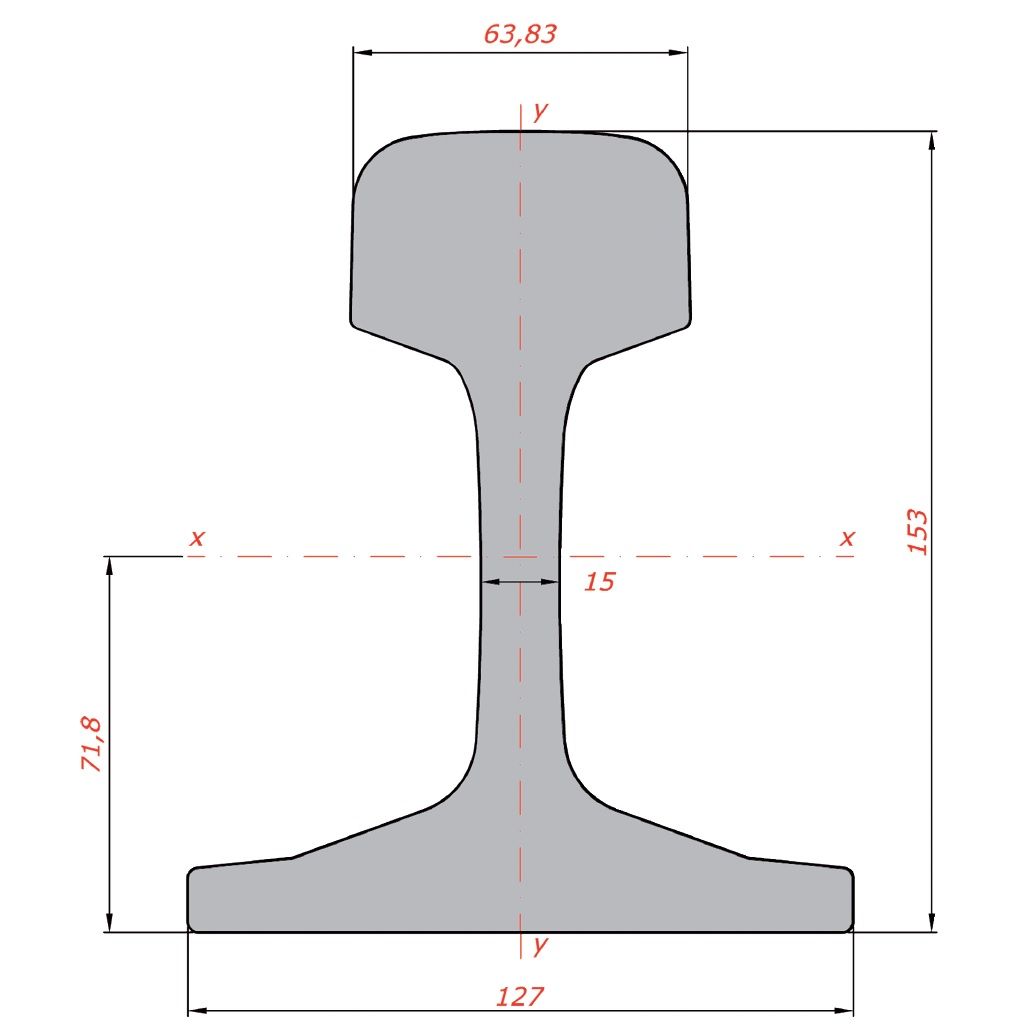

JIS 50kgN

Head 63.83mm
Height 153mm
Base 127mm
Weight per meter 50.4kg
Available in 6~10m, 12m and 18m

Availabe with holes at both end

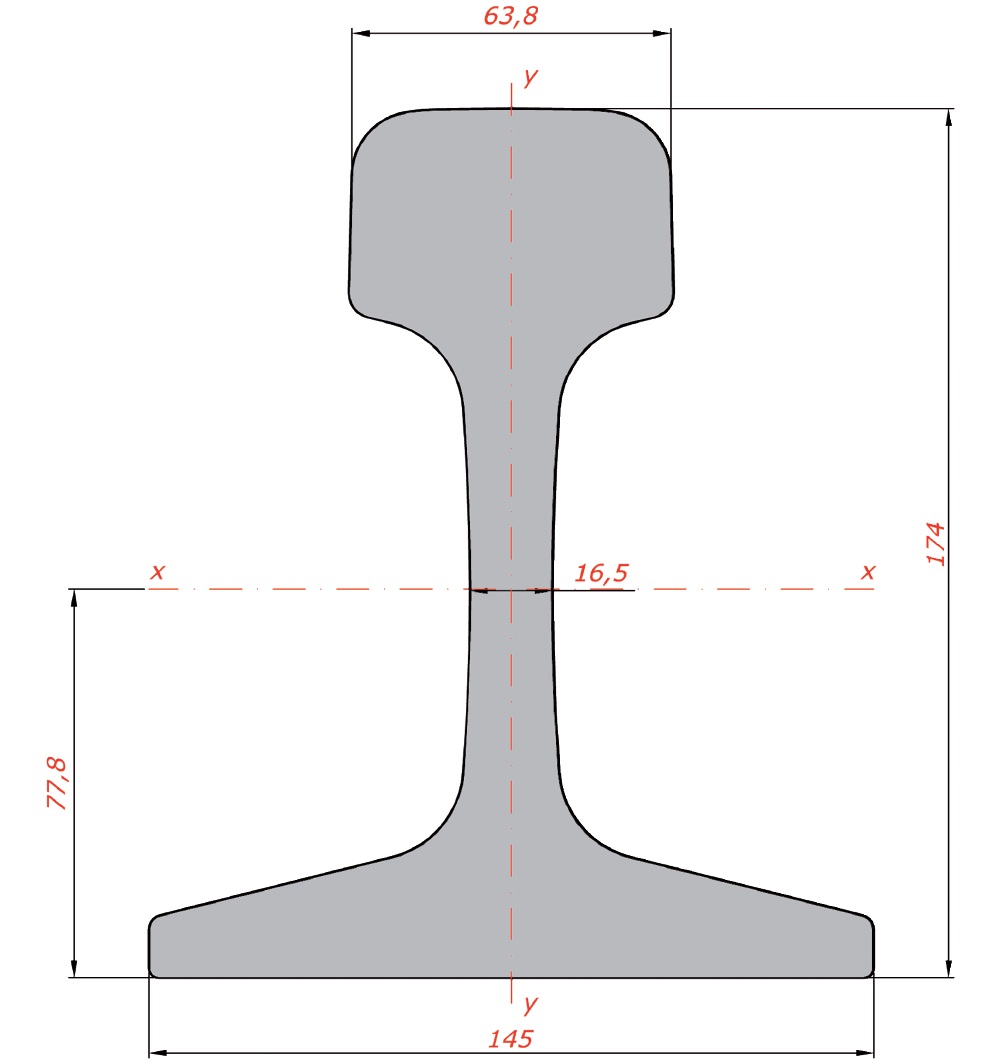

JIS 60kg Rail

Head 63.8mm
Height 174mm
Base 145mm
Weight per meter 60.8kg
Available in 6~10m, 12m and 18m

Availabe with holes at both end
