Screw clamp for hanging the hook of a lever block when building vessels and manufacturing(attachment and press) construction plants and also for horizontal lifting during the press process.

NH-AB

Long Hook For Hanging Hook

NH-AC

Long Hook For Hanging Hook

SPECIFICATION

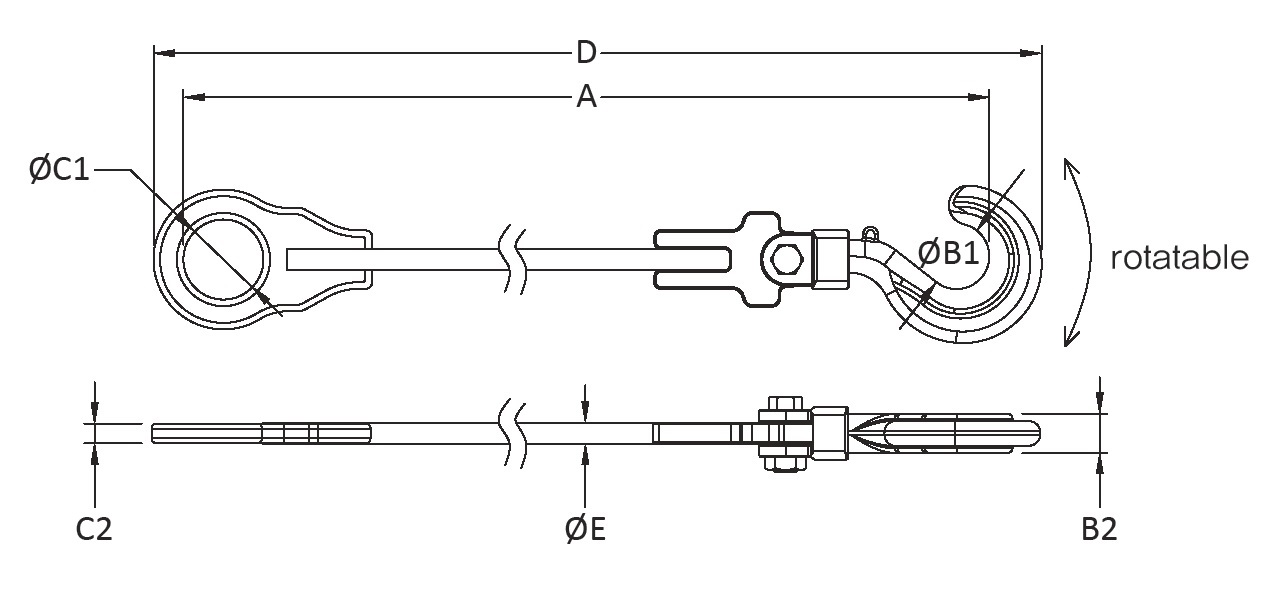

WLL(TON) Working Length A øB1 øB2 øC1 C2 D øE Weight (Kg)
3 500 500 45 32 55 20 560 20 3.5
1000 1000 45 32 55 20 1060 20 5.0
2000 2000 45 32 55 20 2060 20 8.0
3000 3000 45 32 55 20 3060 20 11.0
4000 4000 45 32 55 20 4060 20 14.0
5000 5000 45 32 55 20 5060 20 17.0

SPECIFICATION



WLL(TON) Working Length A øB1 øB2 øC1 C2 D øE Weight (Kg)
3 500 500 45 32 55 20 560 20 4.3
1000 1000 45 32 55 20 1060 20 5.8
2000 2000 45 32 55 20 2060 20 8.8
3000 3000 45 32 55 20 3060 20 11.8
4000 4000 45 32 55 20 4060 20 14.8
5000 5000 45 32 55 20 5060 20 17.8

· Application

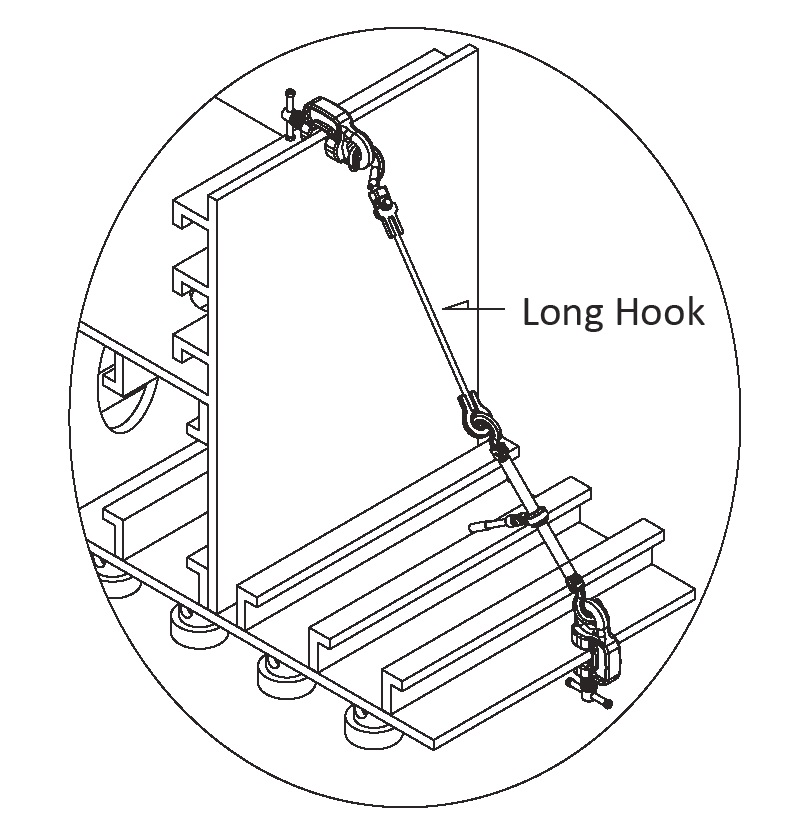

Long hooks used for hanging the hook of a lever block when safely fixing high blocks in shipyards.

· Features

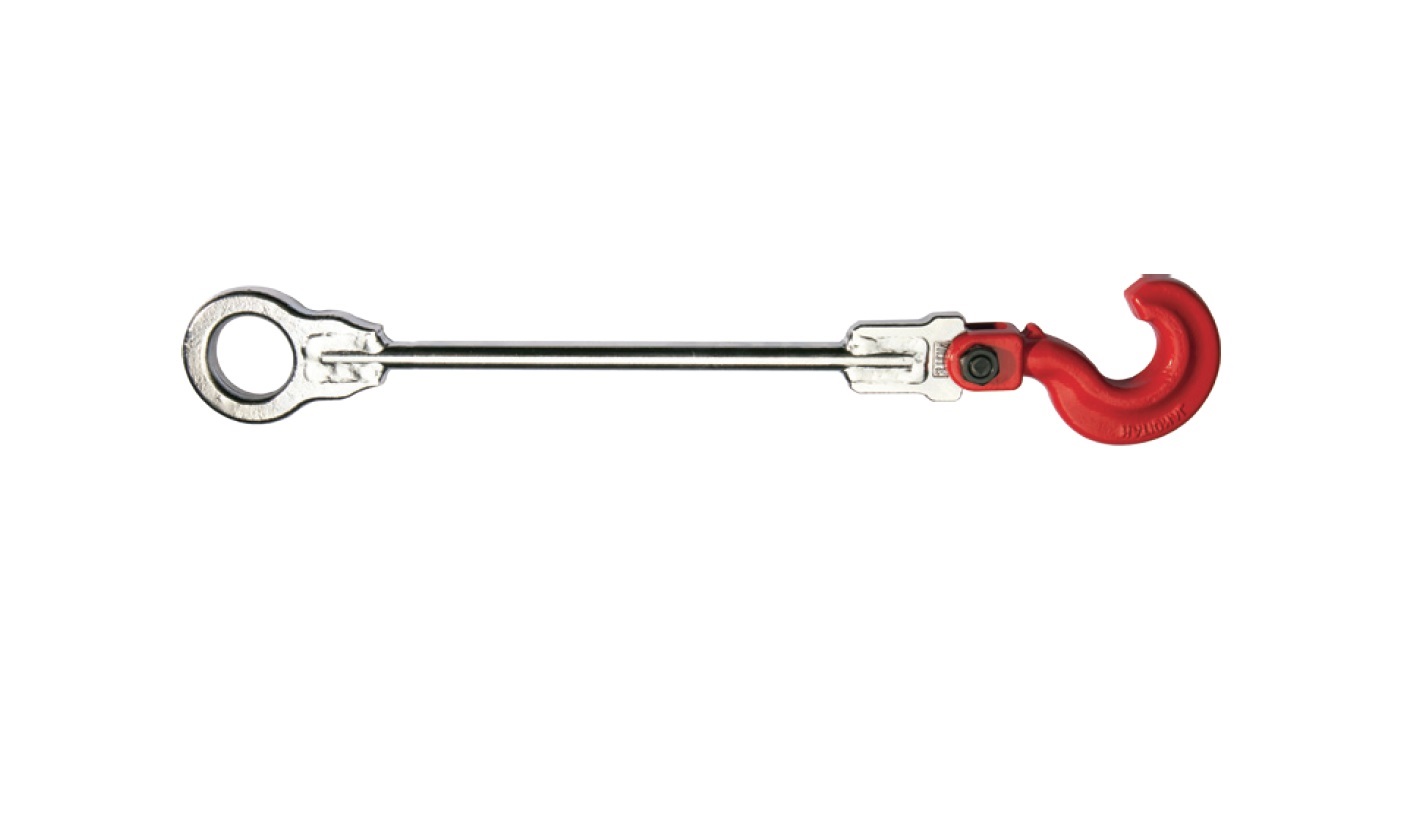

The NH-AB is an efficient hook which consists of the fixed eye hook and the clevis slip hook. And the clevis slip hook rotates 45° from left to right on the bolt

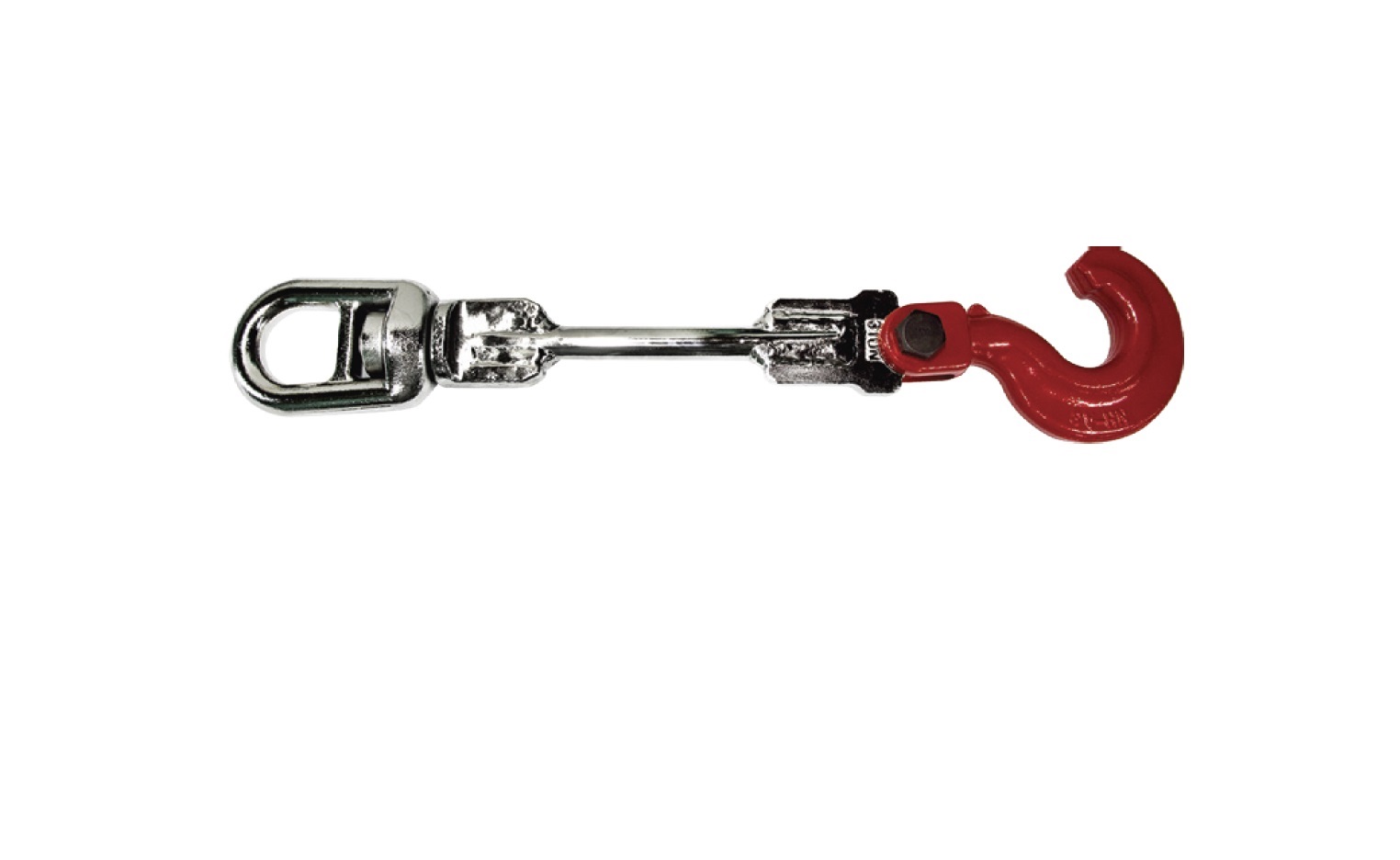

TThe NH-AC is a convenient and efficient hook which consists of the swivel eye hook and the clevis slip hook. While the swivel hook rotates 360° on the axis(round bar), the clevis slip hook rotates 4°5 from left to right on the bolt.

TWhen fixing a block in the windy side of a yard, using these ho oks with a ratchet puller or a turn buckle can improves the safety of work.

The round bar, the axis, of the NH-AB and the NH-AC can be sele ctive in the unit of meter depending on the working environment.

How to Use

Hang the clevis slip hook on a high place.

· Warning

Do not exceed the rated capacity specified on the hook.

Before use, always check that the tack welding of a steel block is perfect.

Begin work after confirming that the clevis slip hook is completely hung in the eye hole(shackle) of a screw clamp.
