Screw clamp for hanging the hook of a lever block when building vessels and manufacturing(attachment and press) construction plants and also for horizontal lifting during the press process.

NPC-DB Screw Clamp

· How to use

Insert a steel plate into the inside end of the clamp's jaw opening and then completely tighten the screw.



· Application

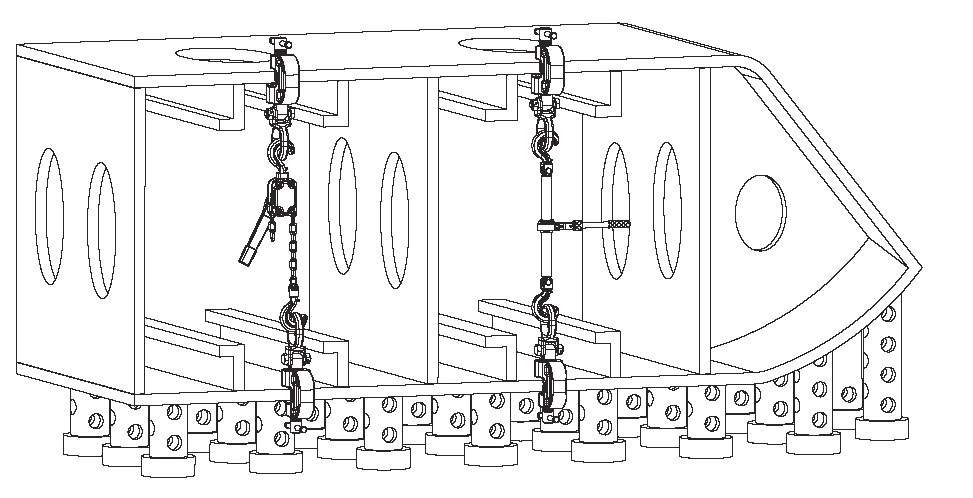

A screw clamp for hanging the hook of a lever block when building vessels and manufacturing(attaching) construction plants.

· Features

The NPC-DB is a screw clamp used to prevent accidents caused by the widening, slipping or breakage of the hook because the load is concentrated at the end of the hook when hanging the hook of a lever block and a chain block directly on a work piece.

The NPC-DB is a convenient and efficient clamp with the shackle which rotates 360° right and left, making work possible in all directions(up and down, left and right).

· Warning

Do not exceed the rated capacity specified on the clamp.

Use a work piece only which falls within the jaw opening range specified in the instruction manual.

If the load is placed laterally, not straightly, on the eye hole, use only 1/2 of the rated capacity.

Never lift a work piece with this model

For horizontal lifting, the clamping point must be two or more. When clamping, the clamps must face each other, not look in one direction

· SPECIFICATION:

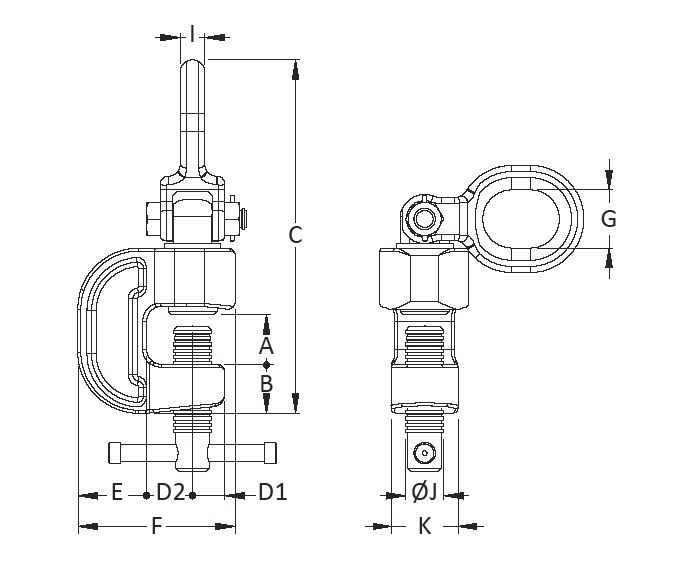

WLL(TON) Jaw Opening A B C D1 D2 E F G I øJ K Weight (Kg)
1.5 0-25 30 34 235 20 30 46 105 38 16 28 44 3.5
2 0-30 35 36 255 22 35 48 112 40 18 30 48 4.3
3 0-35 40 40 280 27 43 52 130 45 20 34 56 6.2
5 0-50 55 52 378 35 55 60 155 55 30 40 70 13.1
0-70 75 52 390 40 52 67 168 55 30 40 74 15.4
6 0-100 110 62 445 48 60 79 192 55 30 42 84 22.8
