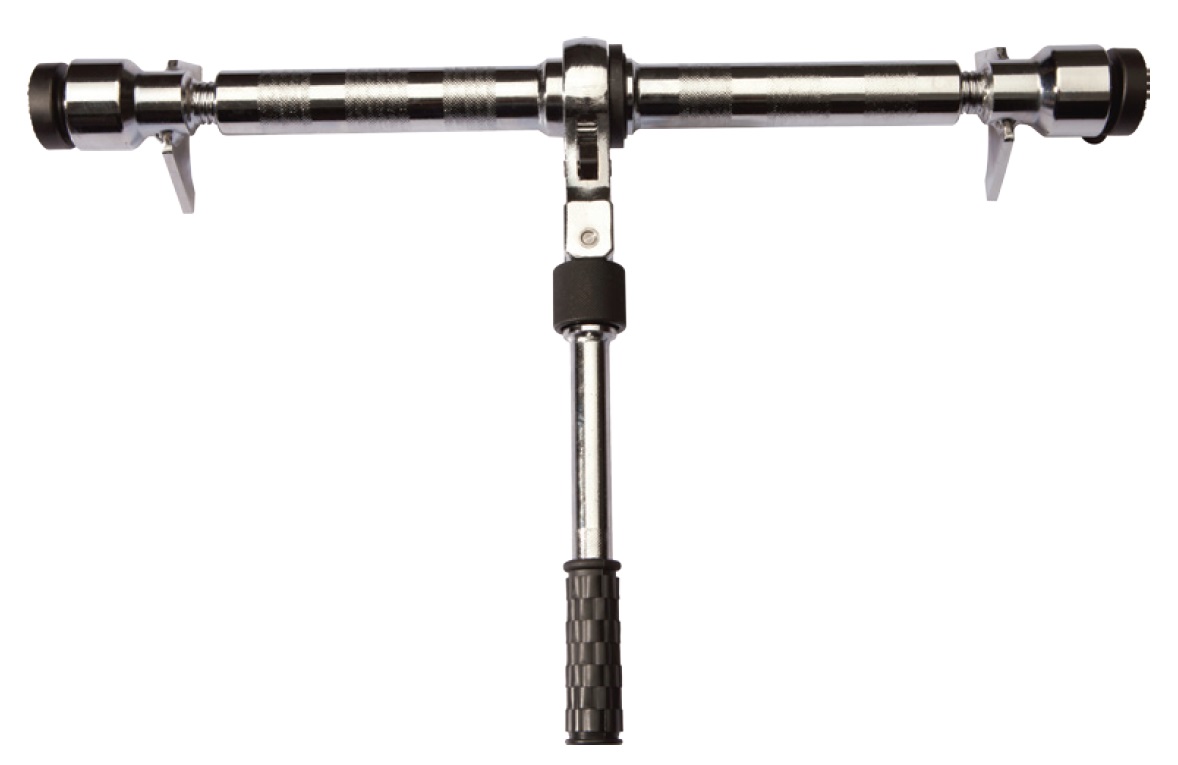

NPR-C Ratchet Pusher

· Application

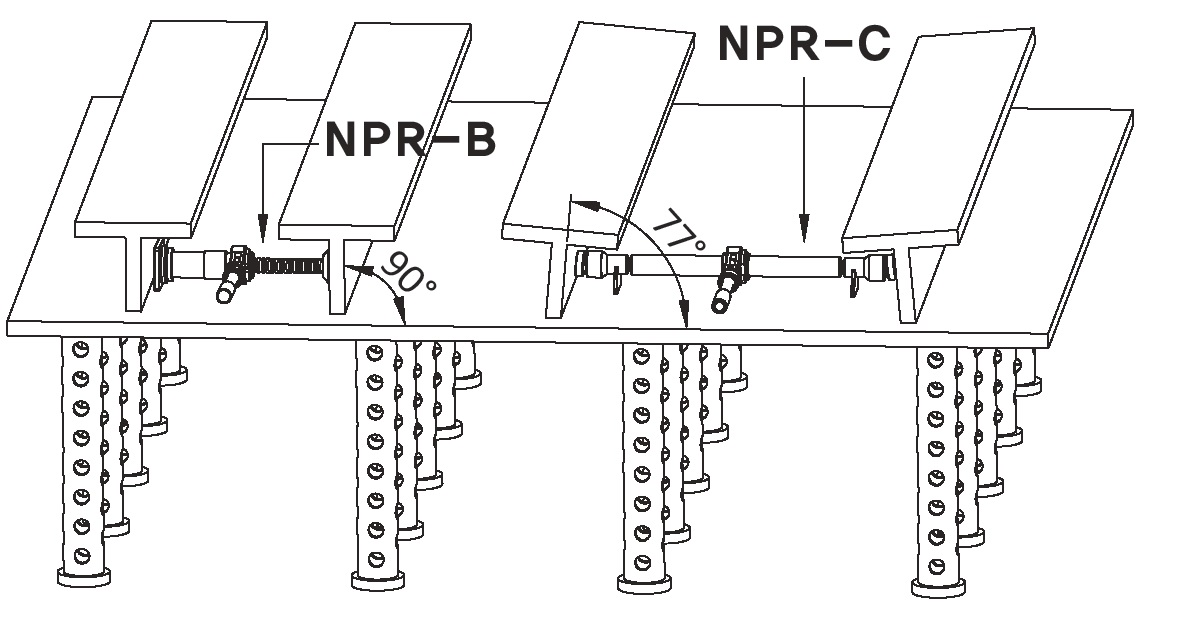

The NPR-C is a ratchet pusher used to adjust the interval of frames when attaching side frames to the outer plating and the inner bottom plating of a ship.

· Features

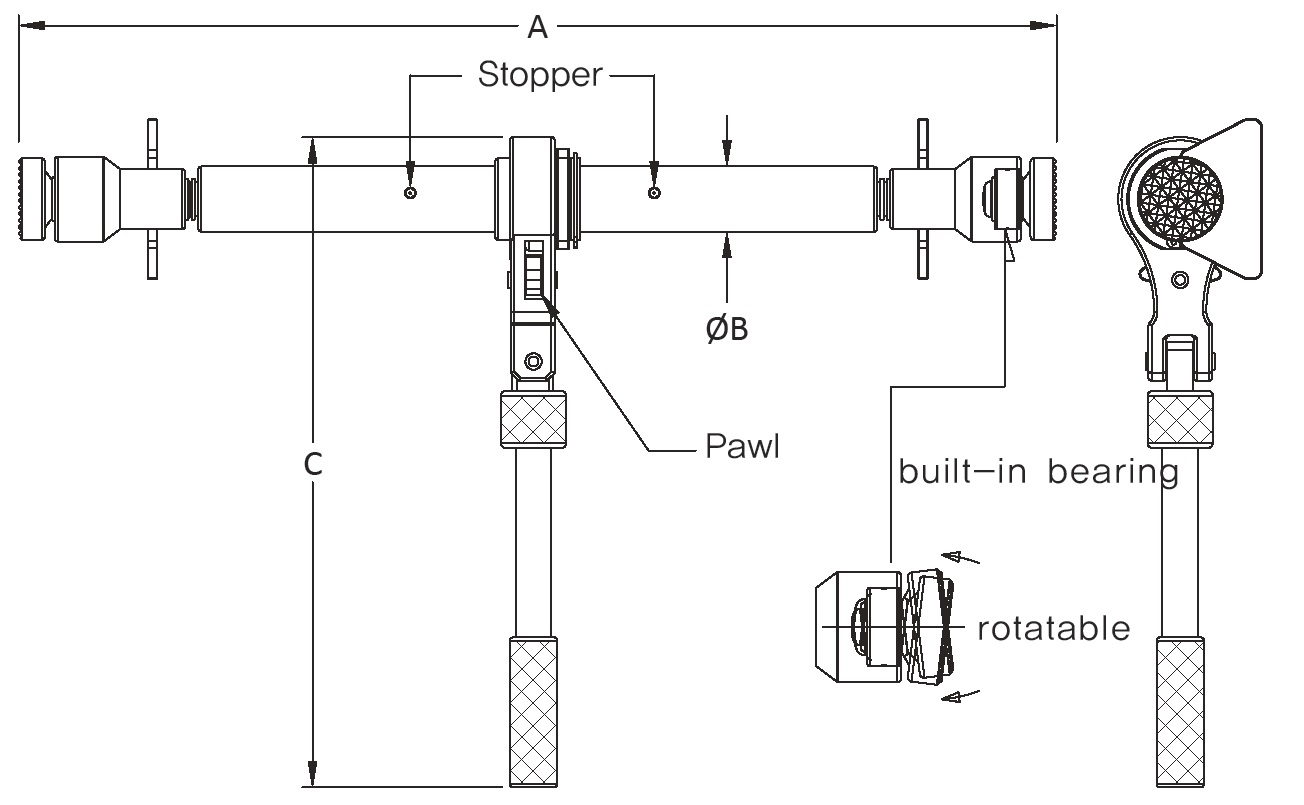

For the NPR-C, the two pads, which come in contact with a work piece, are built in the bearing and the toothshaped contact area enables the rotation and the tilting(max. 13°) of the pads to be free and also to prevent slipping, making the NPR-C a safe product.

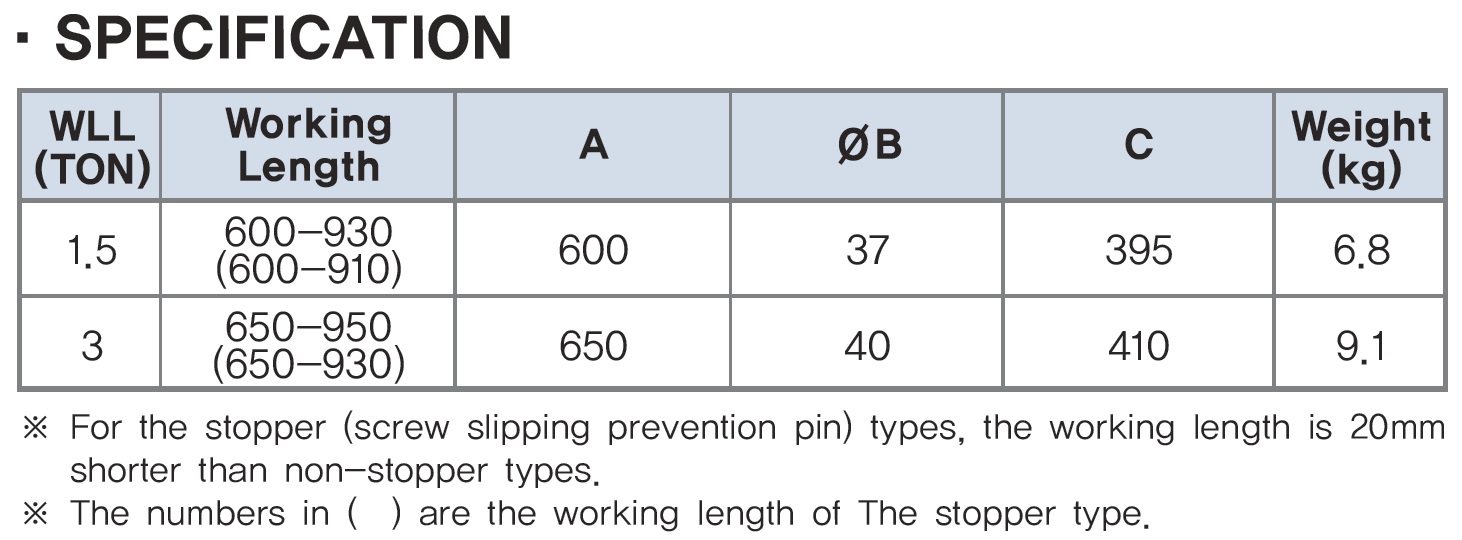

The stopper type has the built-in pin to prevent the screw from completely coming out of the pipe.

How to Use

Erecting the swivel pad vertically (the NPR-C), push up or down the pawl according to purposes and then opearte the handle.

· Warning

Do not exceed the rated capacity specified on the ratchet puller.

Be careful that there can be slipping when the inner angle of a work piece to be pushed is not vertical or horizontal.

For non-stopper types, leave at least 40mm of the screw thread inside one end of the pipe(80mm for both ends) when pulling the screw out of a pipe
