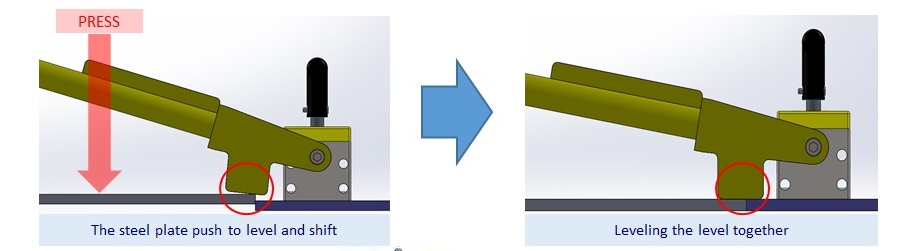

Easy adjustment of the butt welds.
Improve work efficiency and quality by minimizing temporary tack welding and grinding.
Magswitch is a technology that allows a permanent magnet to be turned on and off mechanically like an electromagnet but with no need for ongoing power to sustain a strong magnetic field. Like no other Magswitch is super strong for its size exhibiting up to 5 times the power of other magnet systems.
Download brochure here
(You will need Adobe Reader to read the PDF)
Butt Joint Alignment Tool (WLA Series)

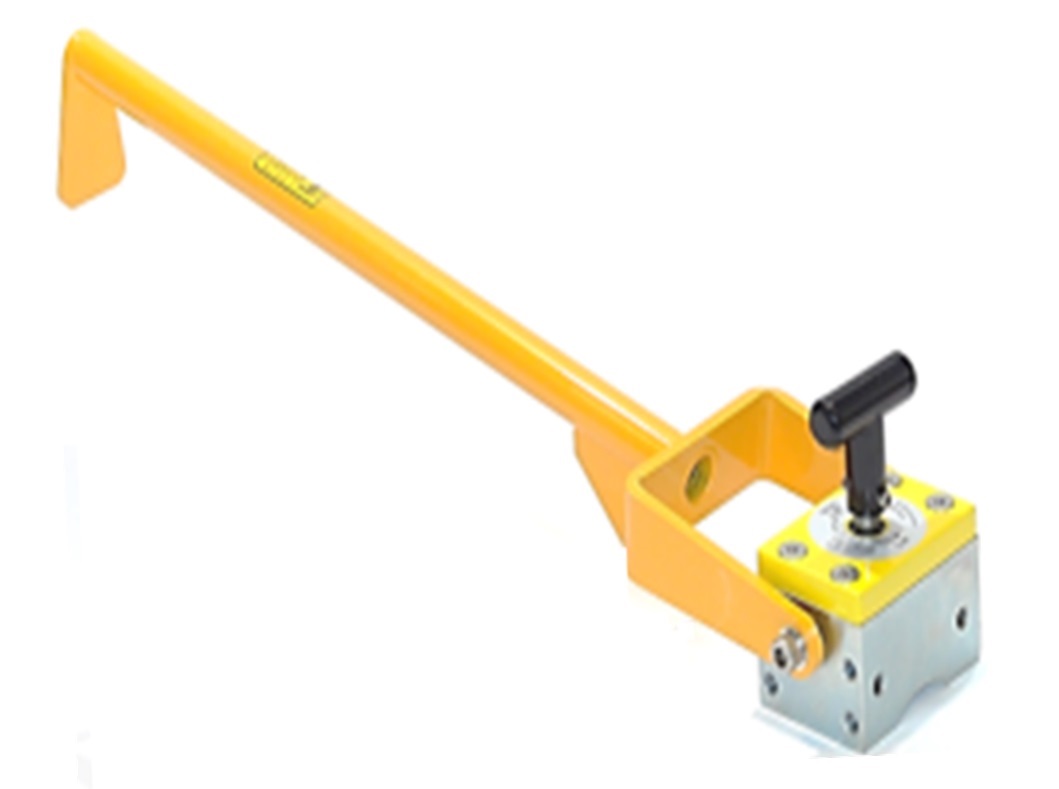

WLA-500 (Lever Type)
Weight: 5.9kg
Max Magnetic Force 500kgf
Measurement108L x 72W x 76H
Thickness10mm Thickness and below
WLA-800(Lever Type)
Weight: 9.5kg
Max Magnetic Force 800kgf
Measurement
Thickness12mm Thickness and below

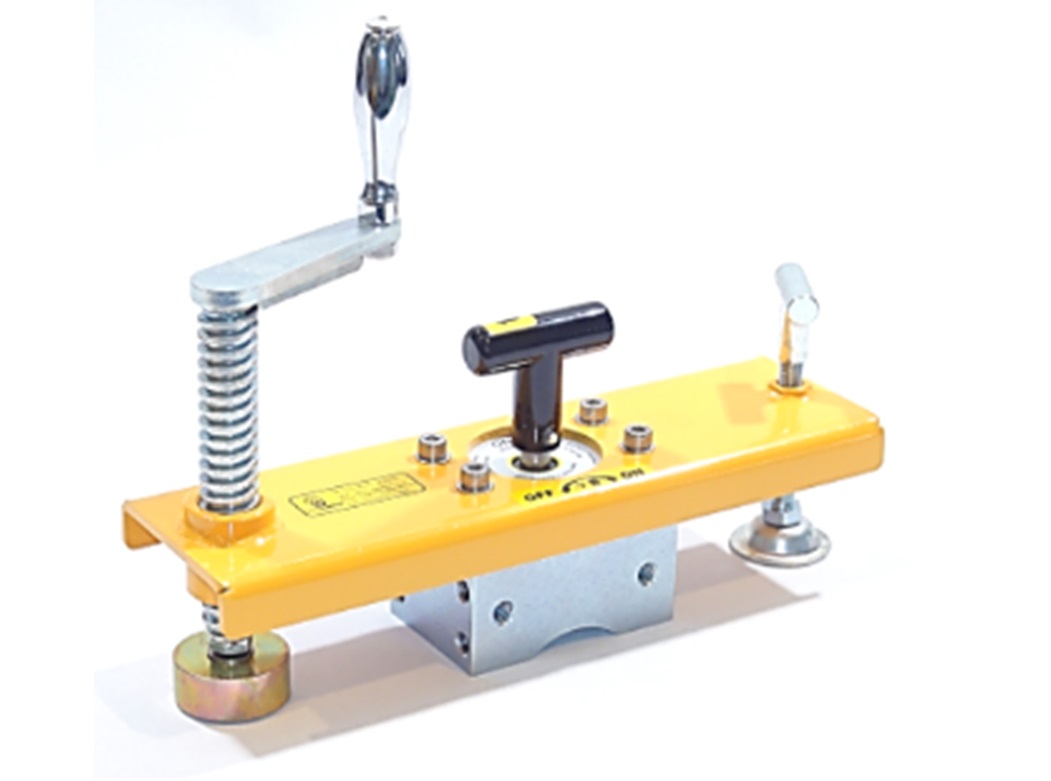

WLA-500(Ratchet Type)
Weight: 6.9kg
Max Magnetic Force 530kgf
Measurement340L x 100W x 275H
Thickness10mm Thickness and below

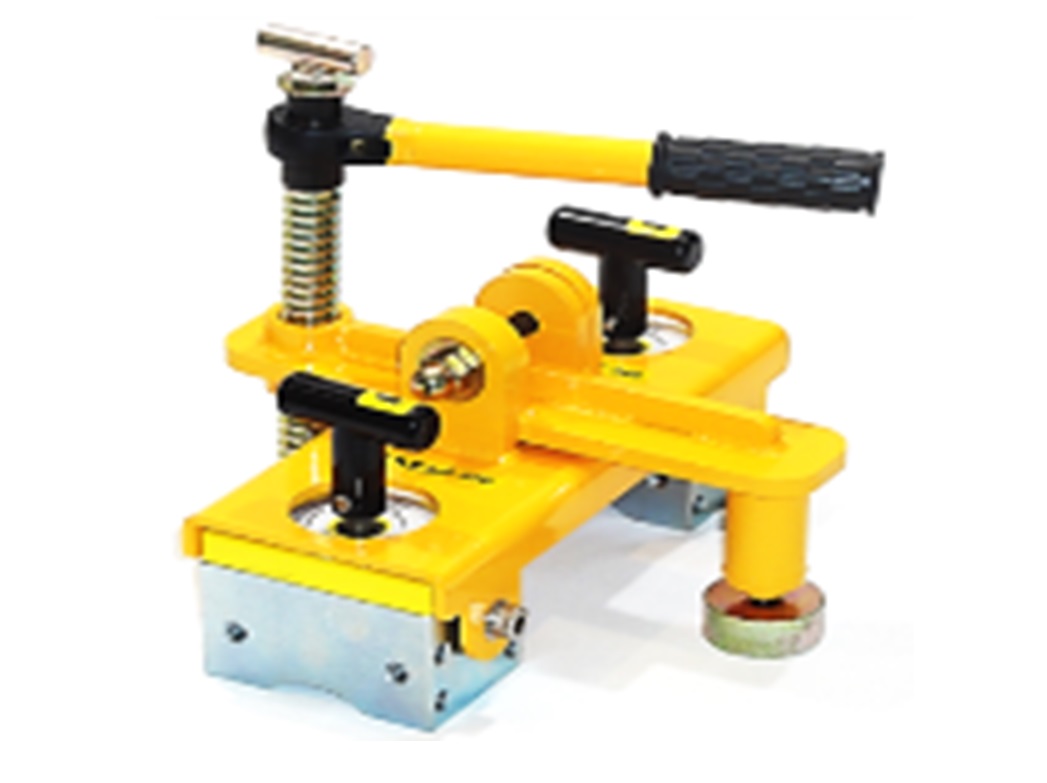

WLA-1000 (Ratchet Type)
Weight: 13.5kg
Max Magnetic Force 1,000kgf
Measurement300L x 280W x 268H
Thickness20mm Thickness and below

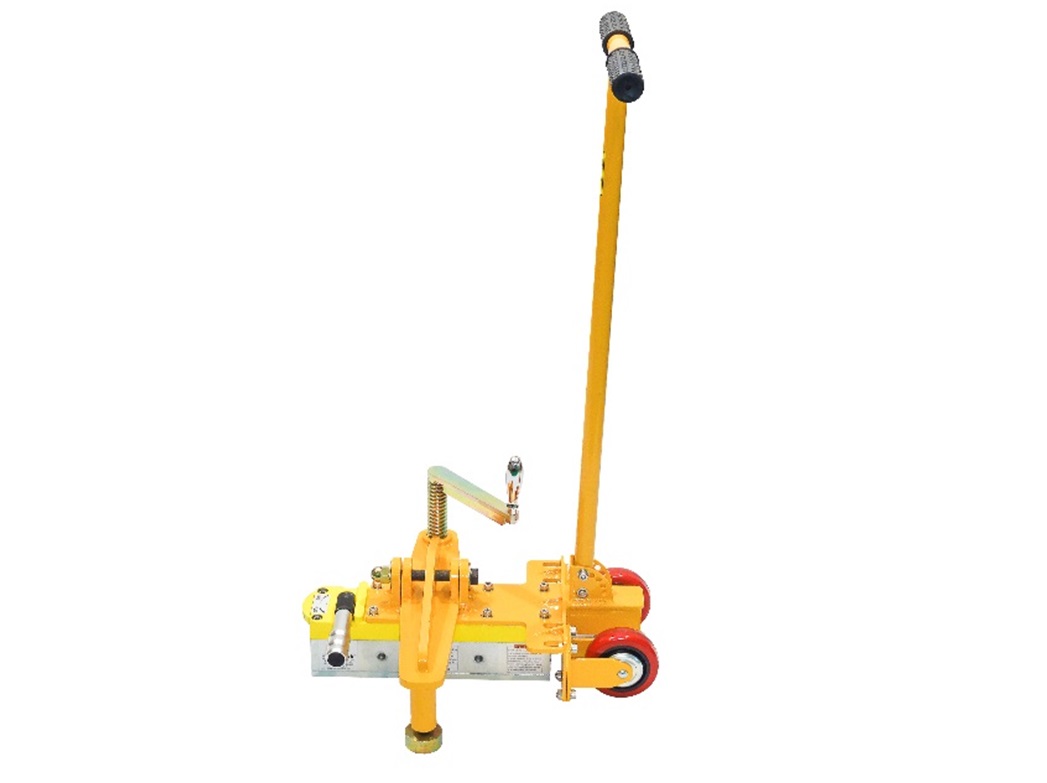

WLA-2200 (Ratchet Type)
Weight: 31.5kg
Max Magnetic Force 2,000kgf
Measurement500L x 400W x 800H
Thickness approx 22mm Thickness and below

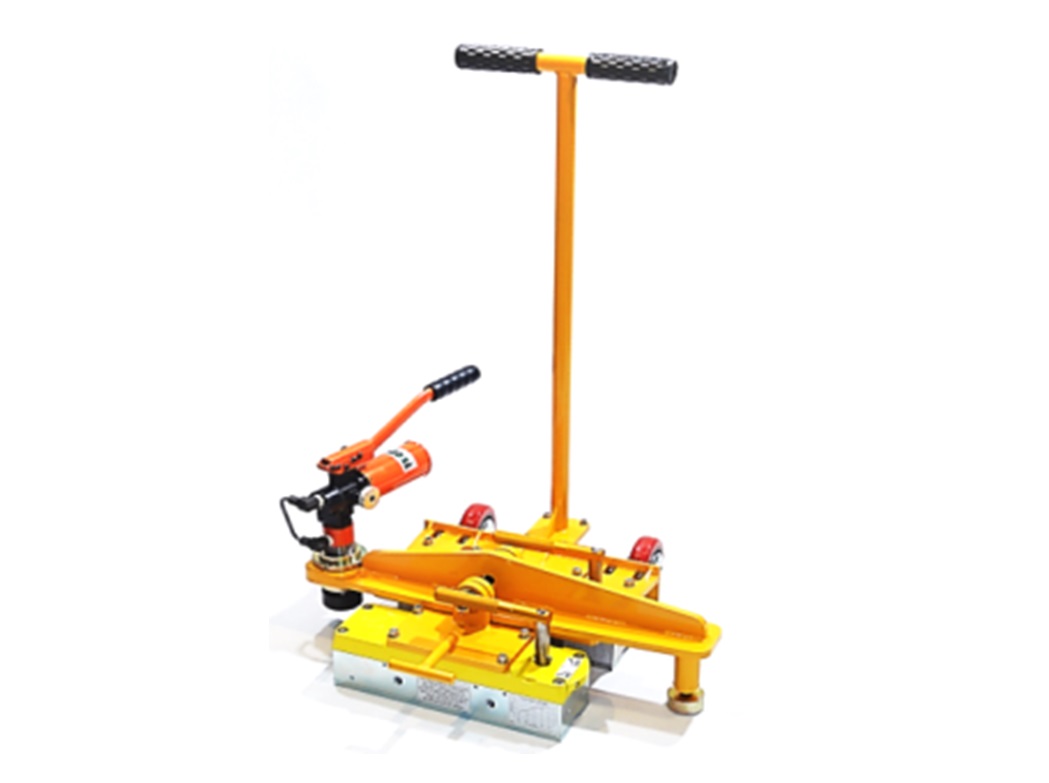

WLA-3000/WLA-4000(Hydraulic Type)
